Benefits and Defects of Induction Hardening Process

Induction hardening is a method of rapidly and selectively hardening the surface of metal parts. After hardening, the metal structure is transformed into martensite, which is much harder.

Gear sing tooth CNC induction hardening equipment

Benefits

Increased strength

Compressive stress (often considered a positive property) is due to the fact that the hardened structure near the surface occupies a slightly larger volume than the core and previous structure.

Increased wear resistance

There is a direct link between hardness and wear resistance. Assuming that the initial state of the material is annealed or treated to a softer condition, the wear resistance of the part is greatly increased by induction hardening.

Suitability for various steels

The most common steel used for induction hardened parts is 1045, which is easy to machine, low cost, and has a relatively low risk of cracking during machining. Other common materials used for this process are 1141/1144, 4140, 4340, ETD150 and various cast irons.

Defects

Potential for cracking

This is due to rapid heating and hardening, and the tendency to create hot spots at features/edges such as keyways, recesses, cross holes, and threads.

Material limitations

Since the induction hardening process does not normally involve the diffusion of carbon or other elements, the material must contain sufficient carbon and other elements. Steels such as 1008, 1010, 12L14, 1117, etc. are usually not used because of the limited increase in hardness that can be achieved.

Tooling required

Since the coupling distance between the part and the coil is critical to heating efficiency, the size and profile of the coil must be carefully selected. While most fabricators have a basic library of coils, some projects may require custom coils, sometimes at great expense.

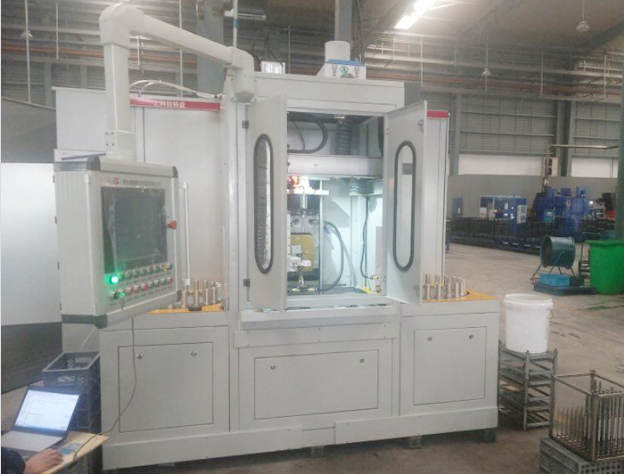

Oil pump shaft induction hardening machine
