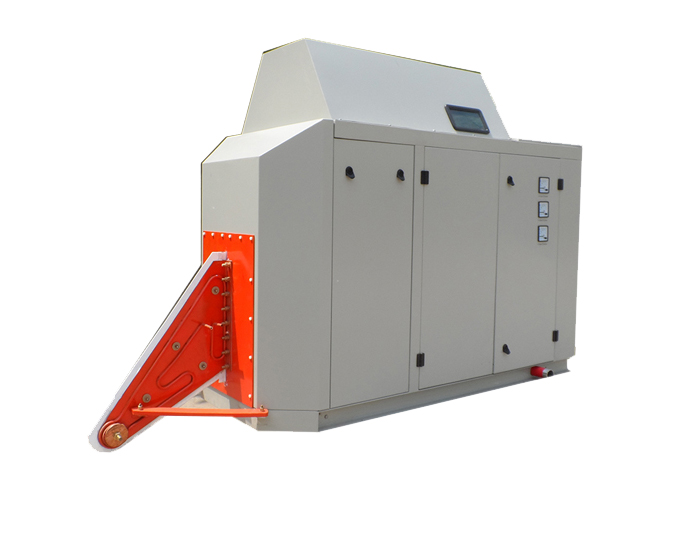

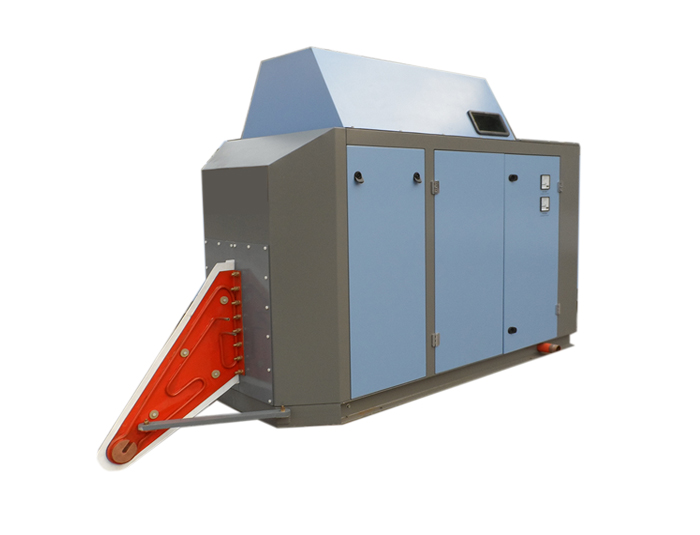

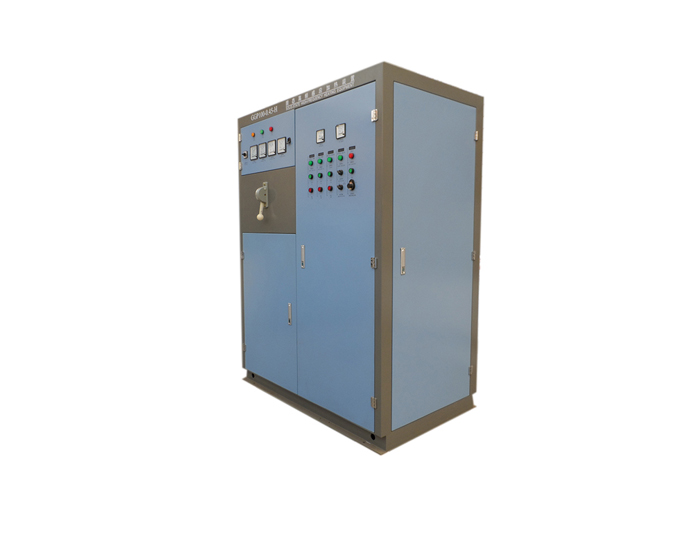

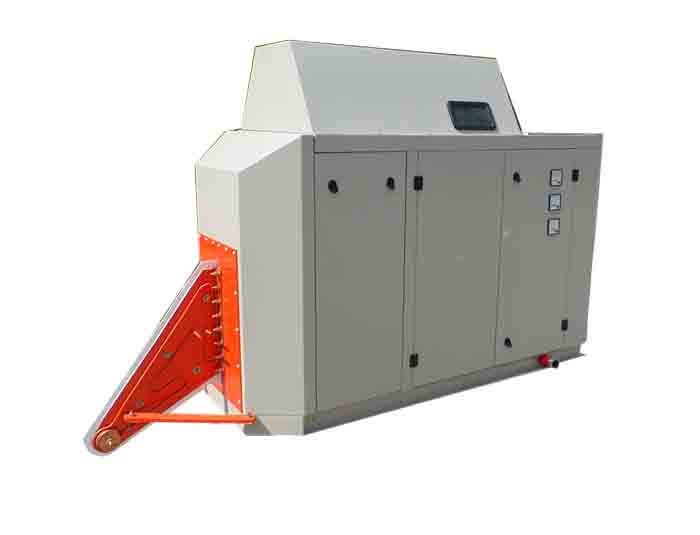

Solid State High Frequency Welder


Our solid state high frequency welder has high quality and high productivity. The power includes 100kw, 150kw and even higher. The solid-state high-frequency welder integrates the switchgear and rectification part of the design, and in addition to completing the switchgear function, it also has the rectification control function of the solid-state high-frequency welder. High-frequency welding machines and induction heating technology currently has the highest efficiency and fastest speed for heating metal materials, and low consumption and environmental protection. It has been widely used in all walks of life in thermal processing, heat treatment, etc.


Solid State Welder Main Features

Solid state high frequency welding machine can not only heat the workpiece as a whole, but also heat the workpiece partially; it can realize the deep penetrating heat of the workpiece, and can also concentrate heating only on its surface and superficial layer; it can not only heat the metal material directly, but also heat the non-metal material indirectly.

Want to watch a reliable solid state high frequency welder? Click here


Uses of HF welding machine

Heat treatment: local or whole hardening, annealing, tempering.

Heat forming: whole forging, partial forging, hot upsetting, hot rolling.

Welding: brazing of various metal products, welding of various tool blades and saw blades and saw teeth, welding of steel pipes and copper pipes, welding of homogeneous dissimilar metals.

Metal melting: melting of gold, silver, copper, iron, aluminum and other metals, casting molding and evaporation coating.

Other applications of high-frequency heating machine: semiconductor single crystal growth, heat fit, bottle mouth heat sealing, toothpaste skin heat sealing, powder coating, metal implantation into plastic, etc.

We are one of the most professional manufacturers of induction heating equipment in China. We mainly supply induction heat treatment machine and solid state high frequency welding machine, etc.


Solid State High Frequency Welder Working Principle

A Solid State High Frequency Welder (HF Welder) is a type of welding machine that uses high-frequency electric current to join two pieces of metal together. The principle behind the operation of an HF Welder is based on the generation of an alternating electric current at a high frequency.


The HF Welder consists of three main components: a power supply unit, a frequency converter, and a welding head. The power supply unit generates a high voltage, low current alternating current, which is then passed through a frequency converter that changes the frequency of the current. The welding head is then used to apply the high-frequency current to the metal surfaces that need to be joined.


During the welding process, the high-frequency current creates heat in the metal surfaces that are in contact with each other. This heat causes the metal to soften and melt, allowing the two surfaces to merge and form a strong bond. The HF Welder can be used to join a variety of metals, including steel, aluminum, and copper, as well as non-metallic materials like plastics.


The advantage of using an HF Welder is that it is capable of producing high-quality, high-strength welds quickly and efficiently. Additionally, since the HF Welder uses high-frequency electric current, it generates less heat than traditional welding methods, which can help to reduce distortion and other welding-related issues.


Welcome to Choose Our Solid State High Frequency Welder Machine!

Baoding Chaochang Electromechanical Co, Ltd. is a leading manufacturer of solid state high frequency welder machines. Our high-quality and reliable welding machines are designed using the latest technologies and are built to withstand the demands of industrial applications.


Our solid state high frequency welder machines use a high-frequency electric current to join two pieces of metal together. The working principle behind this technology is based on the generation of an alternating electric current at a high frequency, which is then passed through a frequency converter that changes the frequency of the current. The welding head is then used to apply the high-frequency current to the metal surfaces that need to be joined.


Our high frequency solid state welders are equipped with state-of-the-art features to ensure precise and efficient welding. We use advanced solid state technology in our machines, which results in faster heating times and greater energy efficiency. Our machines also have a longer lifespan compared to traditional welding equipment, making them a cost-effective investment for any enterprise.


As a reliable solid state high frequency welder manufacturer, we prioritize the quality and durability of our products. Our machines undergo strict quality control processes to ensure that they meet international standards and are capable of handling the demands of industrial applications. We also offer technical support and after-sales services to ensure that our customers receive the best possible experience when working with our products.


In summary, Chaochang offers high-quality solid state high frequency welder machines that are efficient, reliable, and cost-effective. Our commitment to innovation and quality has made us a leading manufacturer in the industry, and we look forward to continuing to provide our customers with the best possible welding solutions. If you want to know more details, please contact us by email.
