How Does Induction Annealing Work?

Mar. 07, 2023

Induction annealing is a heat treatment process that involves the use of electromagnetic induction to heat a metal to a specific temperature, hold it there for a set period of time, and then cool it down at a controlled rate. This process is commonly used to improve the mechanical properties and increase the durability of metals, such as steel, aluminum, and copper.



The induction heating process uses an alternating magnetic field to induce eddy currents within the metal part being treated. These eddy currents generate heat, which is absorbed by the metal and causes it to reach the required annealing temperature. The induction heating process has several advantages over traditional heating methods, including faster heating times, higher heating efficiency, and more precise temperature control.



The annealing process involves several steps, including heating, holding, and cooling. Each step is critical in achieving the desired mechanical properties in the metal being treated. Let's take a closer look at each step of the induction annealing process:

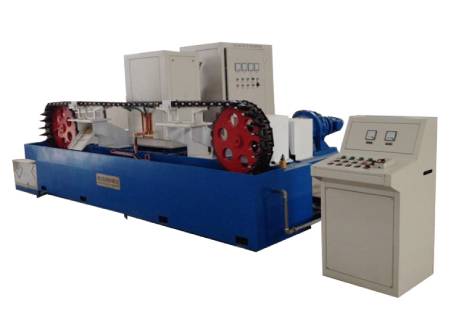

Connecting Rod Induction Annealing Equipment

 Connecting Rod Induction Annealing Equipment

Heating

The first step in the induction annealing process is heating the metal to the desired temperature. The heating process is accomplished by placing the metal part in a high-frequency electromagnetic field generated by an induction coil. The frequency and power of the electromagnetic field are carefully controlled to ensure that the metal is heated evenly and to the desired temperature.



The heating rate is an important factor in achieving the desired metallurgical structure and mechanical properties of the metal. The heating rate should be fast enough to avoid oxidation or other forms of surface degradation, but not so fast that the metal experiences thermal shock or other undesirable effects. The heating rate is typically controlled by adjusting the power output of the induction heating system.



Holding

Once the metal has been heated to the desired temperature, it is held at that temperature for a specific amount of time. The holding time is critical in achieving the desired metallurgical structure and mechanical properties of the metal.



During the holding period, the metal is allowed to undergo several important changes. For example, the crystal structure of the metal may change, resulting in improved ductility, toughness, or strength. The holding period also allows the metal to reach a uniform temperature throughout its volume, which is important for achieving consistent metallurgical properties.



The holding period is typically determined based on the desired metallurgical structure and mechanical properties of the metal, as well as the specific alloy being treated. The holding period can range from a few minutes to several hours, depending on the specific requirements of the annealing process.



Cooling

After the holding period, the metal is cooled down at a controlled rate. The cooling rate is critical in achieving the desired metallurgical structure and mechanical properties of the metal.



The cooling rate can be controlled by several methods, including air cooling, water quenching, or oil quenching. The cooling method is chosen based on the specific alloy being treated and the desired mechanical properties of the final product.



In general, faster cooling rates result in a harder and more brittle metal, while slower cooling rates result in a softer and more ductile metal. The cooling rate is typically controlled by adjusting the quenching medium or the cooling rate of the induction heating system.



Benefits of Induction Annealing

Induction annealing offers several advantages over traditional heating methods, including:



  • Faster heating times - Induction heating can heat metal parts much faster than traditional heating methods, which saves time and energy.

  • More precise temperature control - Induction heating can achieve more precise temperature control than traditional heating methods, which can result in more consistent metallurgical properties.

  • Improved energy efficiency - Induction heating is more energy efficient than traditional heating methods because it only heats the metal part being treated, not the entire heating chamber.

  • More uniform heating - Induction heating can heat metal parts more uniformly than traditional heating methods.


Chaochang induction can produce all kinds of induction annealing equipments for metal, such as pipe seam induction annealing device , cold rolled rebar induction annealing & induction temper machine, induction annealing equipment are also widely used in connecting rod for motorcycle. This connecting rod induction annealing equipment mainly used for motorcycle connecting rod, tractor connecting and other mechanical connecting rod annealing purpose.


If your are interest in our induction annealing equipments or want learn more about its specifications, material and prices, please email us directly at info@bdccjd.com. We are more than happy to answering your questions.
