What Is the Process of Induction Annealing?

Sep. 07, 2023

Induction annealing is a heat treatment process that involves the use of electromagnetic induction to heat a metal workpiece to a specific temperature and then cool it slowly to alter its properties, such as hardness and ductility. This process is commonly used to relieve internal stresses, soften metals, and improve their machinability. Here is an overview of theinduction annealing process:

1. Preparation of the Workpiece:

The first step is to prepare the metal workpiece by cleaning it thoroughly to remove any contaminants, rust, or scale that may interfere with the induction heating process.

2. Setting the Induction Coil:

An induction coil, typically made of copper or other conductive materials, is positioned around or near the workpiece. The coil is connected to an induction power supply.

3. Heating the Workpiece:

When the induction power supply is turned on, it generates alternating electrical current in the coil, creating an alternating magnetic field around the workpiece.

The magnetic field induces eddy currents within the workpiece due to its electrical conductivity. These eddy currents generate heat through resistive heating, raising the temperature of the workpiece.

The frequency and power settings of the induction power supply are adjusted to achieve the desired heating rate and temperature profile for annealing. The temperature is closely monitored using thermocouples or infrared sensors.

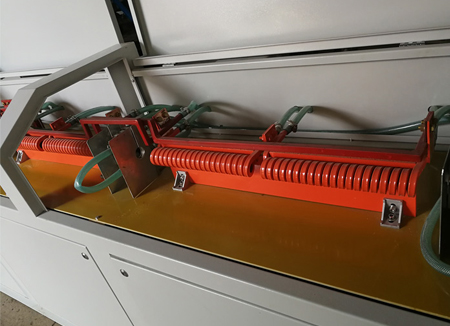

Ribbed Rebar Induction Annealing Line

Ribbed Rebar Induction Annealing Line

4. Holding at Annealing Temperature:

Once the workpiece reaches the target annealing temperature, it is held at that temperature for a specified period to ensure uniform heating throughout the material. The duration of this holding time depends on the material and the desired annealing results.

5. Cooling the Workpiece:

After the annealing soak period, the induction power supply is gradually reduced or turned off, allowing the workpiece to cool slowly. This controlled cooling process is essential for relieving internal stresses and achieving the desired material properties.

Some applications may require quenching, where the workpiece is rapidly cooled in a quenching medium, such as oil or water, to achieve specific hardness or microstructure changes. However, induction annealing primarily involves slow cooling.

6. Inspection and Testing:

Once the workpiece has cooled to room temperature, it is typically inspected and tested for the desired annealing results. This may involve hardness testing, dimensional measurements, or other quality checks to ensure the material properties meet the specifications.

7. Post-Annealing Processes:

Depending on the specific application and material, additional processes such as machining, grinding, or further heat treatments may be performed after induction annealing to achieve the final desired characteristics.

Induction annealing is widely used in industries like automotive, aerospace, and manufacturing to improve the formability, machinability, and durability of metal components. Its advantages include precise temperature control, reduced cycle times, and the ability to anneal localized areas without affecting the entire workpiece.
